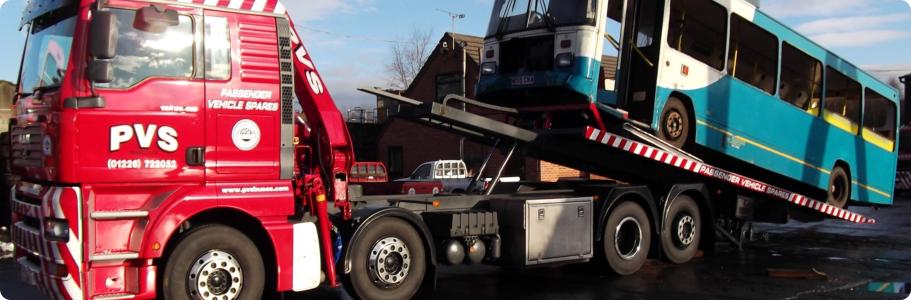

Steel tilt and slide beds

From 7.5 tonnes to 32 tonnes

The body capacity will depend on chassis type and overall GVW.

This Slide Bed Body can be built onto Chassis' from 7.5 tonne to 32 tonne.

Specification:

Body size dependent on wheelbase
Full length subframe
Full length tilt and frame with devlon wear pad
Reinforced steel checker plate floor
Twin hydraulic tilt and body rams
Single slide ram with PO check valve
Heavy duty side raves in high grade steel
Full height flyer
8 x Body lash down rings
Choice of hydraulic winch ranging from 3.6T to 6T capacity
Chassis mounted hydraulic oil tank
Emergency stop/reset system
Pump and PTO
Chassis body locks
Chassis tool locker
Lockable valve cabinet with lighting
LED side marker lights
Light Bar with 2 rotators, 2 x flat mirrors, recovery sign and 2 rear floods
Mudguards, mud flaps and support brackets
1.5T, 2T 3T or 5T second car lift (Optional)
All steel work is finished in epoxy primer and two pack top coat

Options: There are many options available please contact us for details.

Body Capacity:	4000 Kg	6000 Kg	8000 Kg	10,000 Kg
Minimum GVW:	7.5T	10T	18T	26T

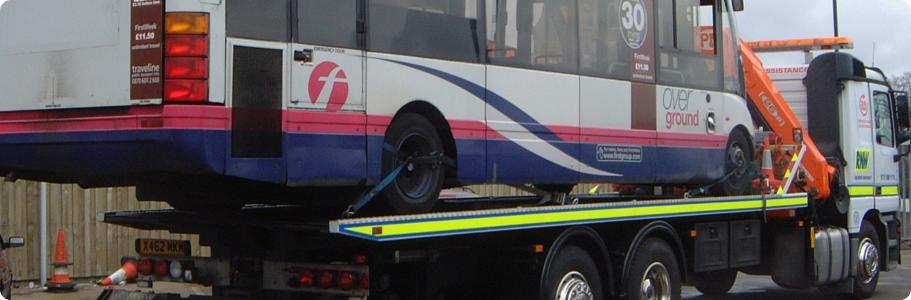

Demonstrating second car lift

Second car lift

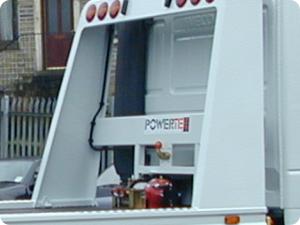

The tilt slide bed comes with a full height flyer

Full height flyer

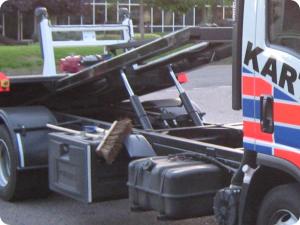

Close up of the twin hydraulic tilt and body rams

Twin hydraulic tilt and body rams
